cavity

Create cavity-backed antenna

Description

The cavity object is a cavity-backed antenna located on the xyz- plane. The default cavity antenna has a dipole as an exciter. The feed point is on the exciter.

Creation

Description

c = cavity creates a cavity backed antenna located on the X-Y-Z plane. By default, the dimensions are chosen for an operating frequency of 1 GHz.

example

c = cavity(Name=Value) creates a cavity-backed antenna, with additional Properties specified by one or more name–value arguments. Name is the property name and Value is the corresponding value. You can specify several name-value arguments in any order as Name1= Value1, ..., NameN=ValueN. Properties not specified retain their default values.

Properties

expand all

Exciter antenna or array type, specified as a single-element antenna object, an array object, or an empty array. Except for reflector and cavity antenna elements, you can use any Antenna Toolbox™ antenna or array element as an exciter. To create the cavity backing structure without the exciter, specify this property as an empty array.

Example: horn

Example: linearArray(Element=patchMicrostrip)

Example: []

Type of dielectric material used as a substrate, specified as a dielectric object. For more information see, dielectric. For more information on dielectric substrate meshing, see Meshing.

Note

The substrate dimensions must be equal to the ground plane dimensions.

Example: dielectric("FR4")

Length of the rectangular cavity along the x-axis, specified as a scalar in meters.

Example: 30e-2

Data Types: double

Width of the rectangular cavity along the y-axis, specified as a scalar in meters.

Example: 25e-2

Data Types: double

Height of the rectangular cavity along the z-axis, specified as a scalar in meters.

Example: 7.5e-2

Data Types: double

Distance between the exciter and the base of the cavity, specified as a scalar in meters.

Example: 7.5e-2

Data Types: double

Type of the metal used as a conductor, specified as a metal material object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information, see metal. For more information on metal conductor meshing, see Meshing.

Example: metal("Copper")

Lumped elements added to the antenna feed, specified as a lumped element object. For more information, see lumpedElement.

Example: lumpedElement(Impedance=75)

Create probe feed from backing structure to exciter, specified as a 0 or 1. By default, probe feed is not enabled.

Example: 1

Data Types: double

Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Data Types: double

Tilt axis of the antenna, specified as one of these values:

  • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

  • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

  • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

showDisplay antenna, array structures, shapes, or platform
infoDisplay information about antenna or array
axialRatioAxial ratio of antenna
beamwidthBeamwidth of antenna
chargeCharge distribution on antenna or array surface
currentCurrent distribution on antenna or array surface
designDesign prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects
efficiencyRadiation efficiency of antenna
EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
impedanceInput impedance of antenna or scan impedance of array
meshMesh properties of metal, dielectric antenna, or array structure
meshconfigChange meshing mode of antenna, array, custom antenna, custom array, or custom geometry
optimizeOptimize antenna or array using SADEA optimizer
patternPlot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
patternAzimuthAzimuth plane radiation pattern of antenna or array
patternElevationElevation plane radiation pattern of antenna or array
rcsCalculate and plot radar cross section (RCS) of platform, antenna, or array
returnLossReturn loss of antenna or scan return loss of array
sparametersCalculate S-parameters for antennas and antenna arrays
vswrVoltage standing wave ratio (VSWR) of antenna or array element

Examples

collapse all

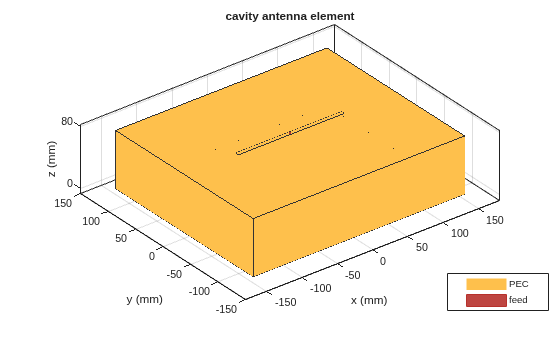

Create and view a cavity-backed dipole antenna with 30 cm length, 25 cm width, 7.5 cm height and spaced 7.5 cm from the bowtie for operation at 1 GHz.

c = cavity(Length=30e-2,Width=25e-2,Height=7.5e-2,Spacing=7.5e-2);
show(c)

Figure contains an axes object. The axes object with title cavity antenna element, xlabel x (mm), ylabel y (mm) contains 5 objects of type patch, surface. These objects represent PEC, feed.

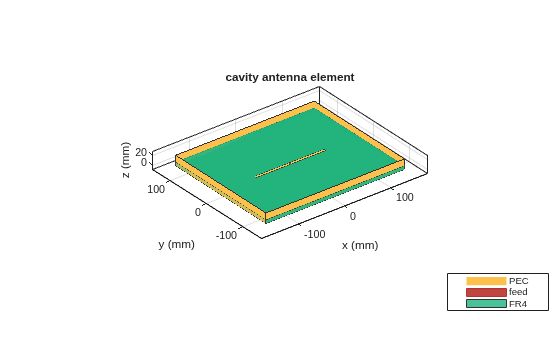

Create a cavity-backed antenna using a dielectric substrate 'FR4'.

d = dielectric('FR4');
c = cavity(Length=30e-2,Width=25e-2,Height=20.5e-3,Spacing=7.5e-3,...
    Substrate=d)
c =
  cavity with properties:

            Exciter: [1x1 dipole]
          Substrate: [1x1 dielectric]
             Length: 0.3000
              Width: 0.2500
             Height: 0.0205
            Spacing: 0.0075
    EnableProbeFeed: 0
          Conductor: [1x1 metal]
               Tilt: 0
           TiltAxis: [1 0 0]
               Load: [1x1 lumpedElement]

show(c)

Figure contains an axes object. The axes object with title cavity antenna element, xlabel x (mm), ylabel y (mm) contains 6 objects of type patch, surface. These objects represent PEC, feed, FR4.

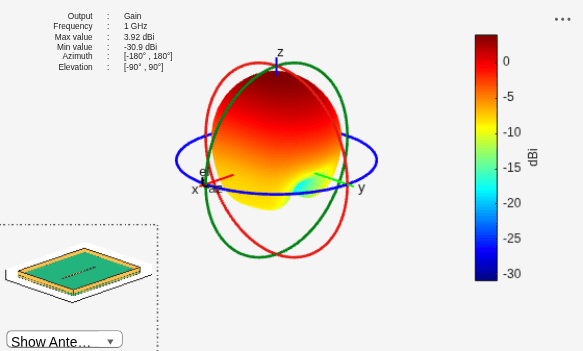

Plot the radiation pattern of the antenna at a frequency of 1 GHz.

figure
pattern(c,1e9)

Figure contains an axes object and other objects of type uicontrol. The axes object contains 6 objects of type patch, surface. This object represents FR4.

Create a rectangular array of E-shaped patch antenna.

rectArr = rectangularArray(Element=patchMicrostripEnotch,RowSpacing=0.03,ColumnSpacing=0.03);

Create a cavity-backed antenna with rectangular array exciter.

ant = cavity(Exciter=rectArr)
ant =
  cavity with properties:

            Exciter: [1x1 rectangularArray]
          Substrate: [1x1 dielectric]
             Length: 0.2000
              Width: 0.2000
             Height: 0.0750
            Spacing: 0.0750
    EnableProbeFeed: 0
          Conductor: [1x1 metal]
               Tilt: 0
           TiltAxis: [1 0 0]
               Load: [1x1 lumpedElement]

show(ant)

Figure contains an axes object. The axes object with title cavity antenna element, xlabel x (mm), ylabel y (mm) contains 16 objects of type patch, surface. These objects represent PEC, feed.

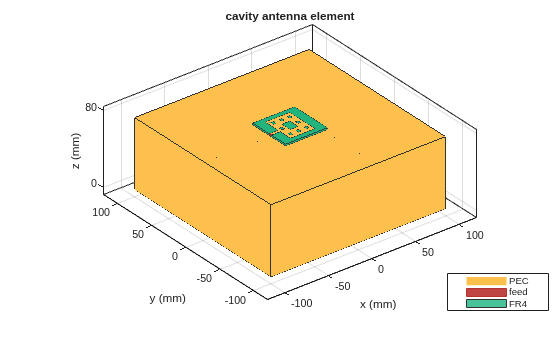

Create and visualize a cavity-backed fractal carpet antenna

e = fractalCarpet(Substrate=dielectric('FR4'));
ant = cavity(Exciter=e)
ant =
  cavity with properties:

            Exciter: [1x1 fractalCarpet]
          Substrate: [1x1 dielectric]
             Length: 0.2000
              Width: 0.2000
             Height: 0.0750
            Spacing: 0.0750
    EnableProbeFeed: 0
          Conductor: [1x1 metal]
               Tilt: 0
           TiltAxis: [1 0 0]
               Load: [1x1 lumpedElement]

show(ant)

Figure contains an axes object. The axes object with title cavity antenna element, xlabel x (mm), ylabel y (mm) contains 7 objects of type patch, surface. These objects represent PEC, feed, FR4.

This example shows how to create and analyze a cavity-shaped backing structure without an exciter element using planeWaveExcitation.

Create Cavity Antenna

Create a cavity antenna operating at 1 GHz using the design function and the cavity element from the antenna catalog. Display the antenna.

f = 1e9;
ant = design(cavity,f);
figure
show(ant)

Figure contains an axes object. The axes object with title cavity antenna element, xlabel x (mm), ylabel y (mm) contains 5 objects of type patch, surface. These objects represent PEC, feed.

Derive Backing Structure

Derive the backing structure from the cavity antenna by specifying the 'Exciter' property as an empty array.

ant.Exciter = []
ant =
  cavity with properties:

            Exciter: []
          Substrate: [1x1 dielectric]
             Length: 0.1690
              Width: 0.1690
             Height: 0.0634
            Spacing: 0.0634
    EnableProbeFeed: 0
          Conductor: [1x1 metal]
               Tilt: 0
           TiltAxis: [1 0 0]
               Load: [1x1 lumpedElement]

Display the backing structure.

figure
show(ant)

Figure contains an axes object. The axes object with title cavity antenna element, xlabel x (mm), ylabel y (mm) contains 2 objects of type patch. This object represents PEC.

Mesh Backing Structure

Mesh the cavity structure with a maximum edge length of 10 mm.

figure
mesh(ant,MaxEdgeLength=10e-3)

Figure contains an axes object and an object of type uicontrol. The axes object with title Metal mesh, xlabel x (m), ylabel y (m) contains an object of type patch. This object represents PEC.

Plot Directivity Pattern

Use the cavity backing structure as a receiver element in a plane wave excitation environment and plot its directivity at 1 GHz.

pw = planeWaveExcitation(Element=ant);
figure
pattern(pw,f)

Figure contains an axes object and other objects of type uicontrol. The axes object contains 3 objects of type patch, surface.

References

[1] Balanis, Constantine A. Antenna Theory: Analysis and Design. Fourth edition. Hoboken, New Jersey: Wiley, 2016.

Version History

Introduced in R2015a
